Inside the Engineering That Keeps a 106-Storey Tower Steady: The 500-Tonne Damper Atop Pinnacle SkyTower

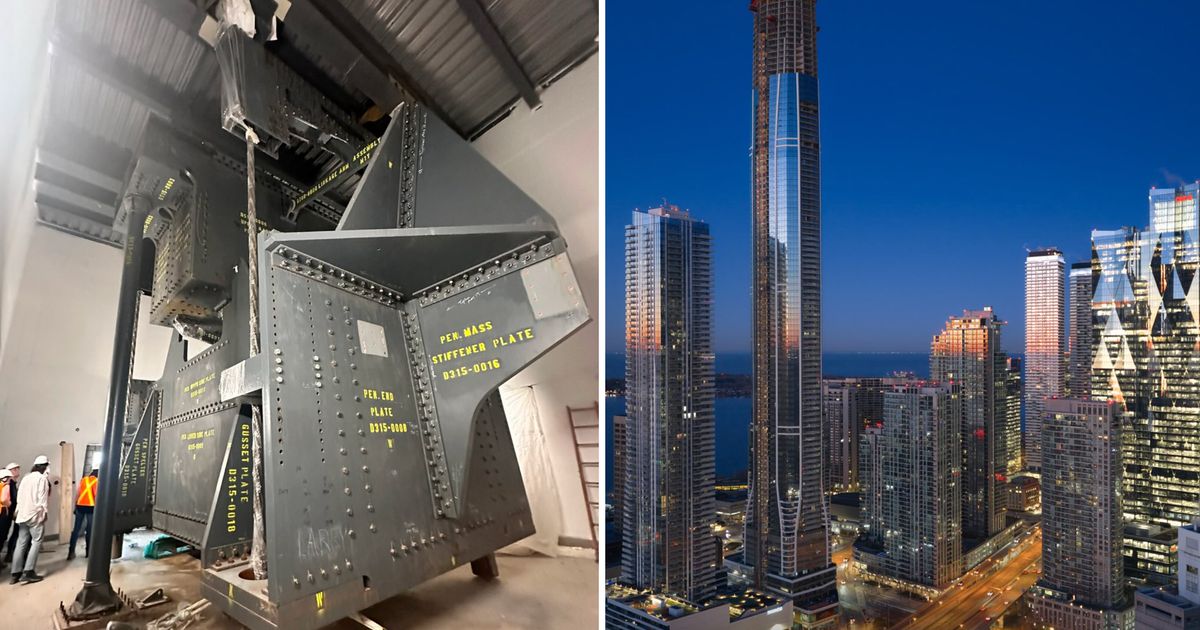

Ask anyone who has spent time on a job site and they will tell you the same thing: the parts of a building you never see are usually the parts doing the most work. That is exactly what is happening near the top of Pinnacle SkyTower in downtown Toronto, where crews have installed a 500-tonne tuned mass damper inside the mechanical penthouse of what is now Canada’s tallest building.
At 352 metres and 106 storeys, this tower is a different animal from the mid-rise projects most of us think of when we picture a construction site. Once a building gets this tall, wind stops being a minor nuisance and becomes a structural design problem. That is where the tuned mass damper, or TMD, comes in. Picture a massive pendulum hung inside the building’s crown. When wind pushes the structure one way, the pendulum’s own swinging motion works against that movement, absorbing energy and keeping the sway within a range occupants will not even notice.
What stands out to me from a trades and materials perspective is the bi-directional design. A basic pendulum swings on one axis, but this system, engineered by Hariri Pontarini Architects, moves both north-south and east-west. That matters because wind does not arrive from one predictable direction in a city like Toronto. Building a damper that can respond in two axes instead of one is a meaningfully more complex piece of mechanical engineering, and it shows in the weight alone. Five hundred tonnes is roughly the equivalent of three single-family homes, suspended and calibrated to move on purpose.
The next phase is just as important as the installation itself. Once the building envelope is fully enclosed, engineers and technicians will run frequency measurements to fine-tune the system. This is not a one-and-done install. A TMD has to be calibrated to the actual mass and stiffness of the finished structure, which is why this step comes late in the build sequence rather than early. It is a good reminder that in tall building construction, sequencing and timing carry as much weight as the materials themselves.
A strong tall building is not just steel and concrete. It is systems working together long after the concrete cures.
For the 958 units that will eventually fill this tower, plus the Le Meridien Toronto Pinnacle Hotel component, this kind of engineering is invisible in daily life, and that is the point. Residents should never feel the wind moving a building this tall. They will only feel the comfort that comes from getting it right. The tower has been under construction since late 2020, and this damper installation marks one of the last major technical milestones before the project reaches completion.
Projects like this are a good reminder that the systems behind the walls, or in this case above the penthouse, are what actually make a building livable at extreme scale. Good workmanship shows up in the details nobody sees.
